Chiropractic Massage Device

*****New Product For Licensing, Manufacturing, and/or Investors*****

U.S. Patent : # 6,695,796

Foreign Patents: Pending

Inventor : David Solmor

invention summary
invention uses
patent drawings
prototype pics
contact info
invention.net

As attorney for the inventor of the innovative Chiropractic Massage Device we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention.

The Chiropractic Massage Device stimulates and provides chiropractic therapy to the neck and head area of the body. When in use the present invention allows for lateral and rotational movement of the head and neck muscles. Using a hand held remote control the doctor or patient utilizes a toggle stick to perform single directional movement of the head in a forward, backward, side to side or clockwise/counter clockwise rotational motion. The head cushion includes a vibration and heating element that is applied to the neck area that can be used in conjunction with the directional and rotational movement, or can be applied alone when the apparatus is stationary.

Objects of the present invention:

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.

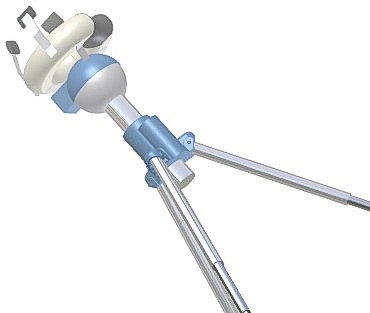

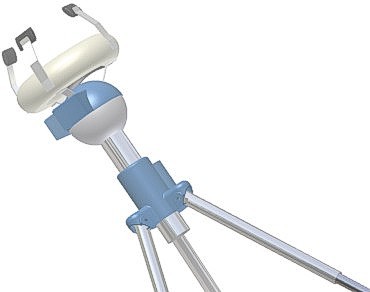

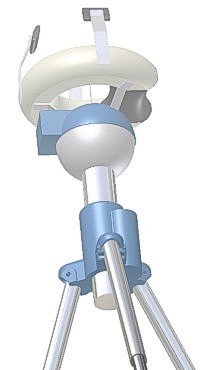

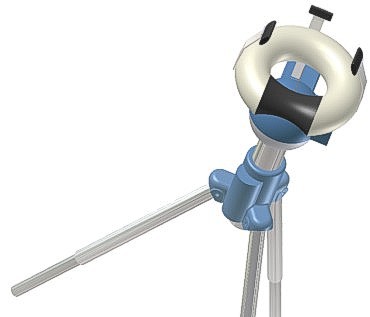

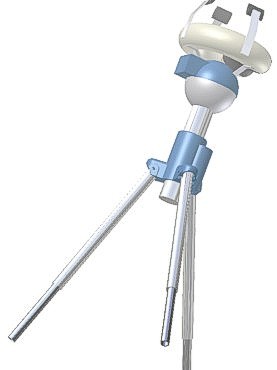

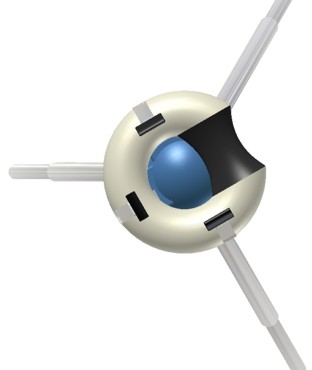

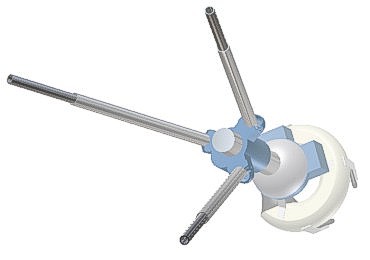

Prototype Pictures

prototype picture prototype picture
Fig A - Side Angled View Fig B - Upward Angled Side View
prototype picture prototype picture
Fig C - Angled Top View Fig D - Angled Side View
prototype picture prototype picture
Fig E - Bottom Angled View Fig F - Side Angled View
prototype picture prototype picture
Fig G - Side View Of Joystick Fig H - Top View

Carrying Case

LIST OF REFERENCE NUMERALS
10 present invention 46 rotation control motor
12 patient48 rotation control belt
14 head of patient 50 tilt control motor
16 head cushion52 tilt control drive wheel
18 head pad 54 tilt control belt
19 head pad support56 interior head cushion housing
20 height adjustment means 58 vibration/heating element
22 spring loaded hinge60 air gap
24 height adjustment control button 62 ceramic
26 neck pad64 toggle switch
28 tripod bracket 66 handle
30 tripod legs68 controller housing
32 adjustable stanchion 70 arrow
34 spherical gudgeon72 turn control motor
36 spherical socket 74 turn control drive wheel
38 head cushion connection member76 turn control belt
39 neck rest connection member 78 carrying case
40 tilt control motor housing80 carrying case strap
42 turn control motor housing 82 support brace
44 rotation control motor housing

PATENT DRAWINGS
patent drawing

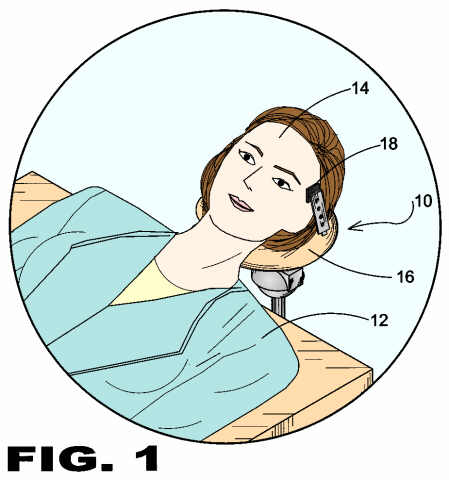

FIGURE 1

Figure 1 is a perspective view of the present invention in use.
patent drawing
FIGURE 2

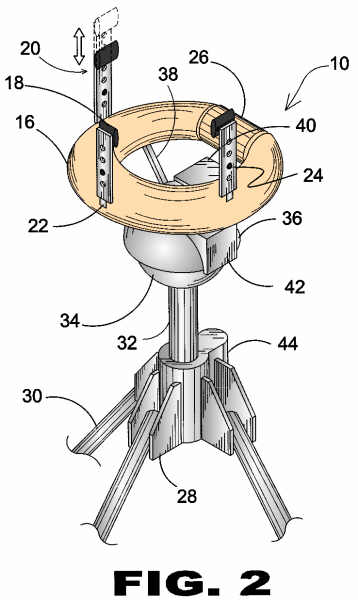

Figure 2 is a perspective view of the present invention.
patent drawing

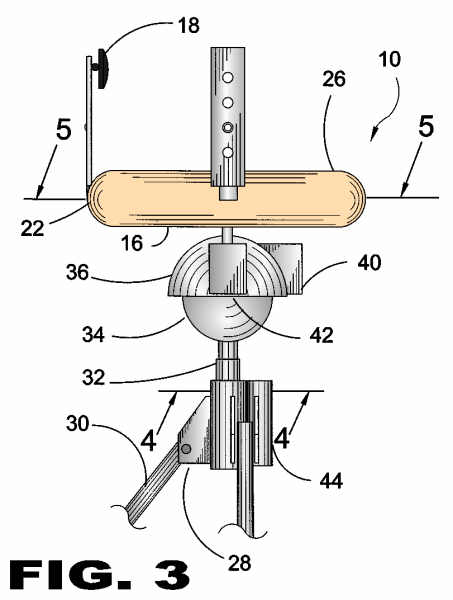

FIGURE 3

Figure 3 is a side view of the present invention.
patent drawing

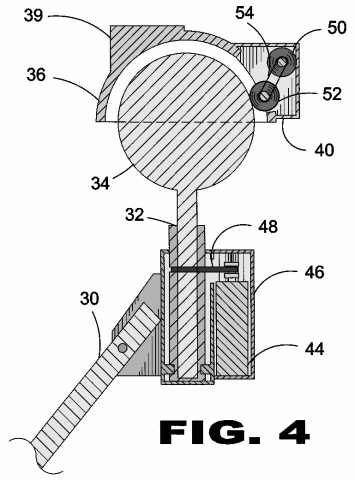

FIGURE 4

Figure 4 is a cross sectional view of the present invention.

patent drawing
FIGURE 5

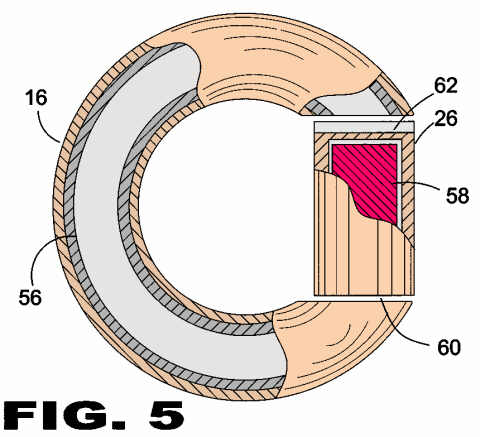

Figure 5 is a cross sectional top view of the present invention.
patent drawing

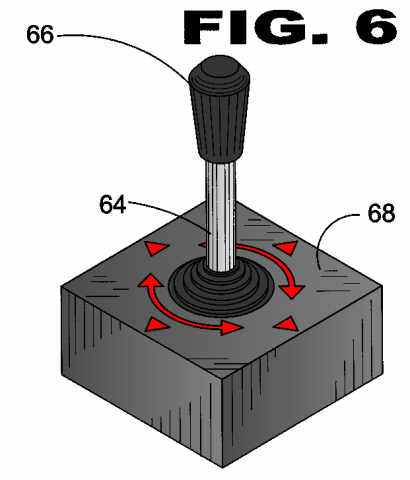

FIGURE 6

Figure 6 is a perspective view of the controller.
patent drawing
FIGURE 7

Figure 7 is a front view of the present invention.
patent drawing
FIGURE 8

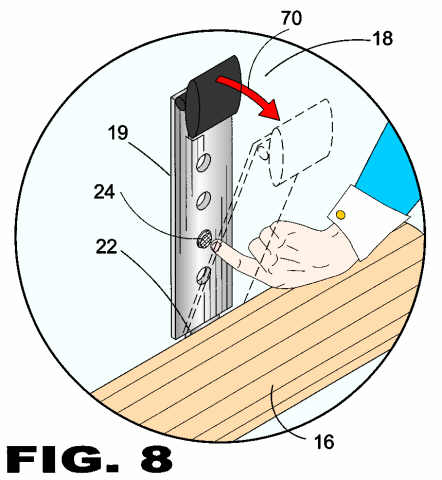

Figure 8 is an enlarged view of a hinged head pad.
patent drawing

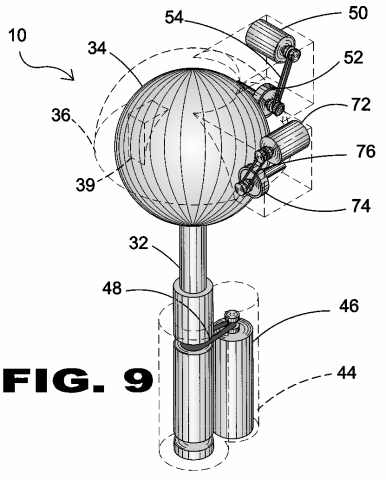

FIGURE 9

Figure 9 is a perspective view of the present invention.
patent drawing

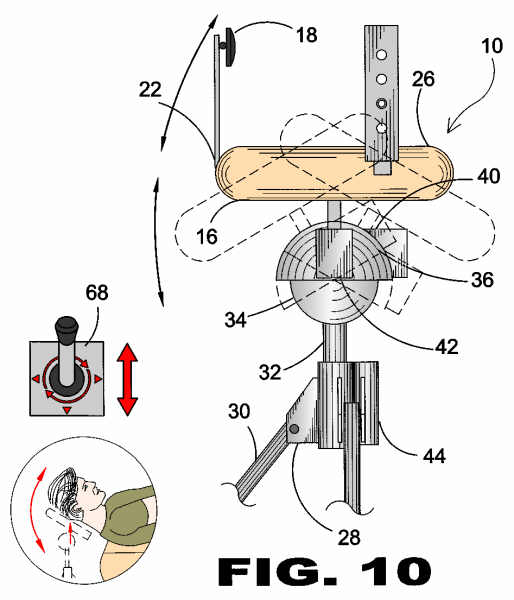

FIGURE 10

Figure 10 is a side view of the present invention.
patent drawing
FIGURE 11

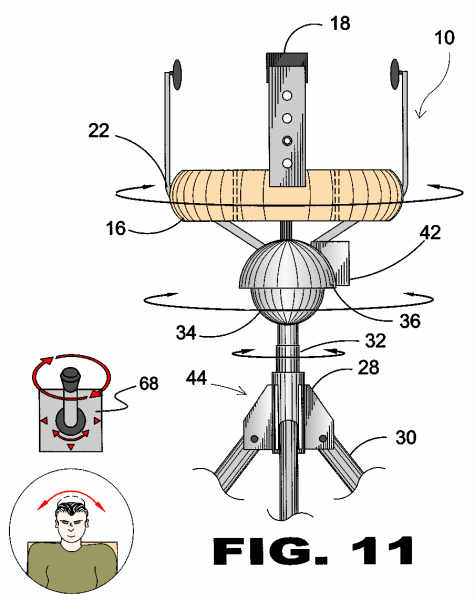

Figure 11 is a front view of the present invention.
patent drawing
FIGURE 12

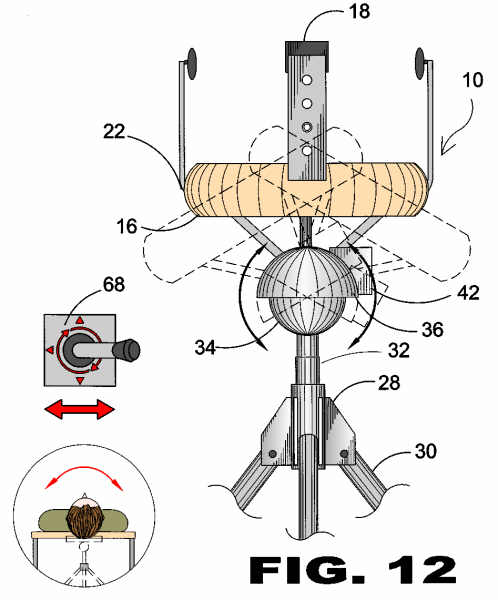

Figure 12 is a front view of the present invention.
patent drawing

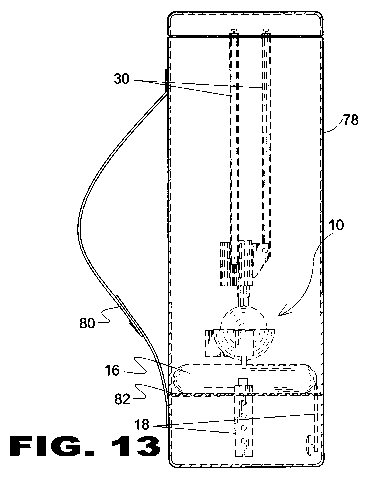

FIGURE 13

Figure 13 is a side view of the present invention.
