Motor Vehicle U-Turn Signal

Motor Vehicle U-Turn Signal

*****New Product For Licensing and/or Investors*****

If you are interested in making an offer or would like more information either contact the attorney at the numbers listed on the bottom of this page or fill out the inventor contact form.

U.S. Patent : # 6,958,687

Inventor : Denise Ann Smith

invention uses

patent drawings

contact info

patent attorney

Interested?

For more information you can contact
the inventor directly using our
inventor contact form.

As attorney for the inventor of the innovative Motor Vehicle U-Turn Signal we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach Mr. Kroll at the contact numbers listed at the bottom of this page.

Objects of the present invention:

to provide an additional signal light on a vehicle that indicates the desire to make a U-turn

to provide an additional signal light on a vehicle with a remote switch for activation

to improve the current standards of turning signals in the motor vehicle industry

to provide a safer means of travel that will prevent motor vehicle accidents

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.

LIST OF REFERENCE NUMERALS

10 present invention 26 dashboard

12 vehicle 28 signal light

14 oncoming vehicle 30 vehicle front

16 rear vehicle 32 vehicle rear

18 left side 34 battery

20 head light/signal light 36 junction box

22 U-turn indicia 38 wiring

24 switch 40 lens

PATENT DRAWINGS

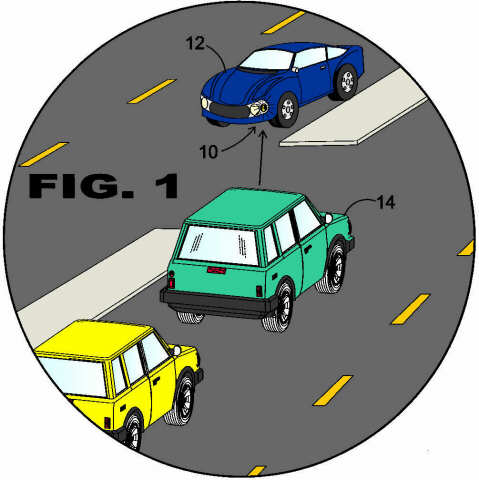

FIGURE 1

Figure 1 is an illustrative view of the present invention in use.

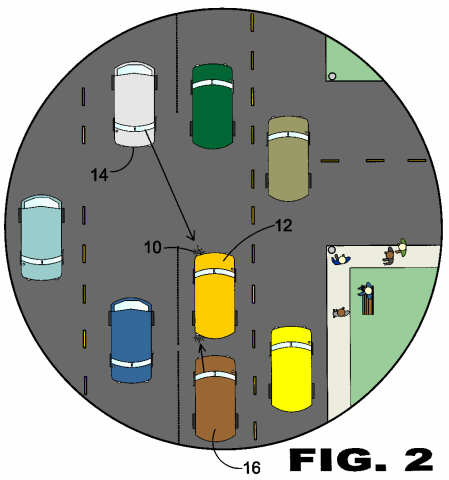

FIGURE 2

Figure 2 is a topographical view of the present invention in use.

FIGURE 3

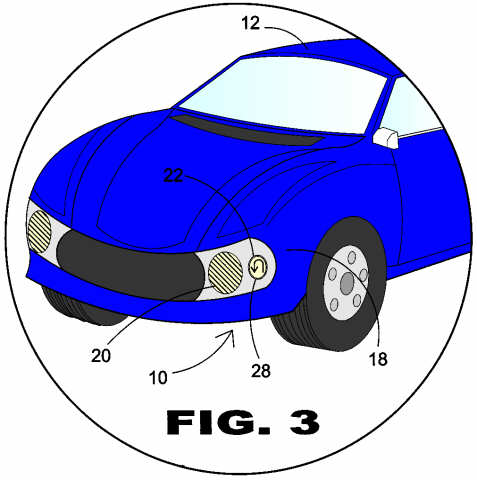

Figure 3 is a front view of the present invention.

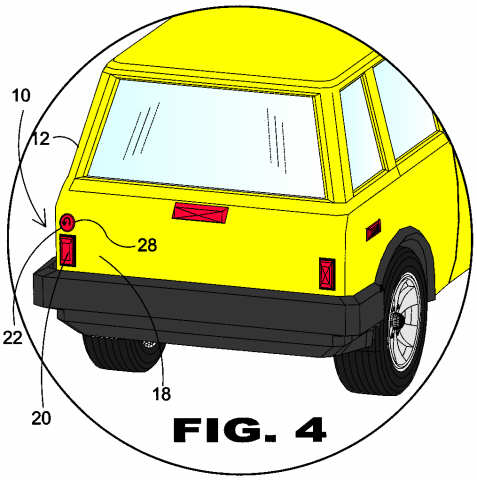

FIGURE 4

Figure 4 is a rear view of the present invention.

FIGURE 5

Figure 5 is a rear view of the present invention.

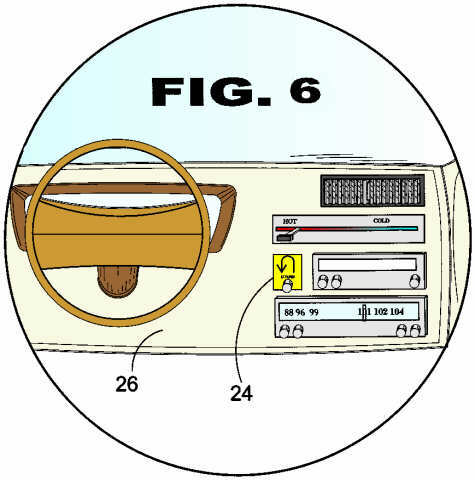

FIGURE 6

Figure 6 is a dash board view of the switch of the present invention.

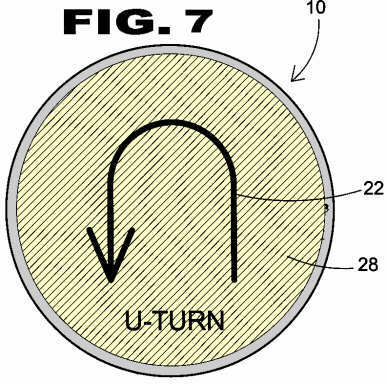

FIGURE 7

Figure 7 is a front view of the signal light of the present invention.

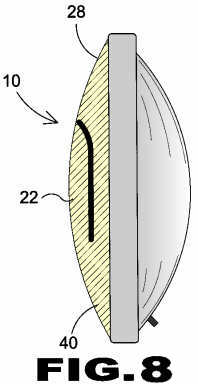

FIGURE 8

Figure 8 is a side view of the signal light of the present invention.

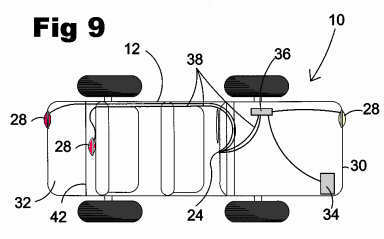

FIGURE 9

Figure 9 is a top view of a vehicle having the signal light of the present invention.

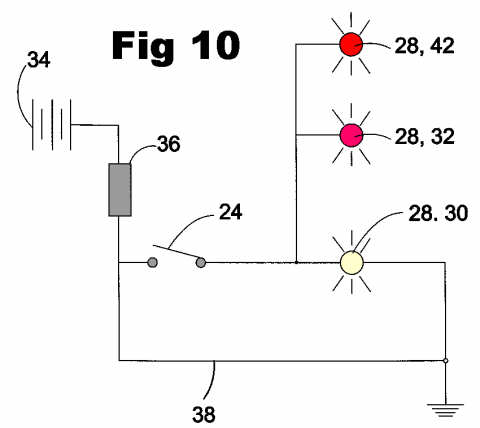

FIGURE 10

Figure 10 is a schematic view of the electrical circuit of the present invention.
