| Disposable Incontinence Device |
***New Product For Licensing, Manufacturing, and/or Investors***
U.S. Patent : # 6,635,038
Inventor : Aldrene K. Scovel
As attorney for the inventor of the innovative Disposable Incontinence Device we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention.
The Disposable Incontinence Device has a disposable urinary bag having a plurality of attachment means located on its outside surface for securement to the adjustable attachment belt. Housed within the disposable urinary bag is an absorbent material for urine absorption. The invention also has in its upper central region an elastic ring or seal that provides a barrier against urine when a penis is inserted into it. On the top portion of the elastic ring, a slit is provided in conjunction with a sealing tab with adhesive to enlarge or constrict the size of the elastic ring. The adjustable attachment belt is comprised of a portion that fits around the wearer's waist with a plurality of attachment means to secure the upper portion of the invention with a plurality of leg straps to provide connection means from the adjustable attachment belt to the lower portion.
Advantages of the present invention:
- provides an incontinence device that promotes positive self esteem in males with a more healthy and natural look than conventional diapers
- provides an incontinence device that contains urine only within the pouch, which allows the perinium area to be kept dry and odor free
- provides an incontinence device that aids in the prevention of diaper rash, skin breakdown and bed sores
- provides an incontinence device that can be worn with briefs or used with a removeable attached disposable jock-like strap
- provides an incontinence device that is smaller than conventional diapers and more cost effective
- provides an incontinence device that can be used for ambulatory and non-ambulatory men
- provides an incontinence device made to accommodate a males anatomy
- provides an incontinence device with a disposable urinary bag
- provides an incontinence device in which the disposable urinary bag is held to the wearer via an adjustable attachment belt and leg straps
- provides an incontinence device with an elastic ring to form a seal around the penis
- provides an incontinence device with a slit and sealing tab on the elastic ring for size adjustment
- provides an incontinence device that is compact and easy to use and dispose
Now for the first time this unique product is available for millions of potential users. The low manufacturing cost is of major importance.
| LIST OF REFERENCE NUMERALS |
| 10 present invention |
26 sealing tab |
| 12user | 28 slit |
| 14 waist attachment belt |
30 flaps |
| 15front strap | 32 fastening means |
| 16 leg strap |
34 absorbent material |
| 17upper attachment | 36 penis |
| 18 bag |
38 impermeable layer |
| 19lower attachment | 40 edge of slit |
| 20 belt adjustment means |
42 front wall |
| 22hook and loop material | 44 rear wall |
| 24 elastic ring |
|
|
| PATENT DRAWINGS |
 |

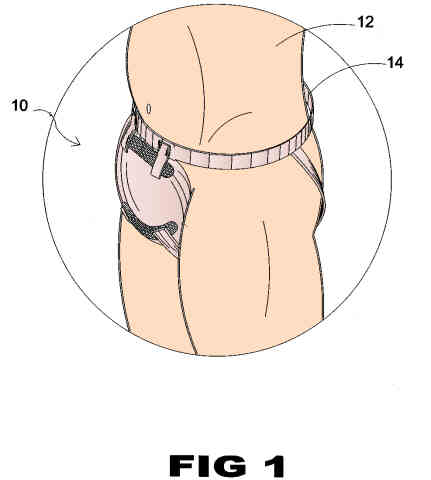

| FIGURE 1 Figure 1 is a perspective view of the present invention. |
 |

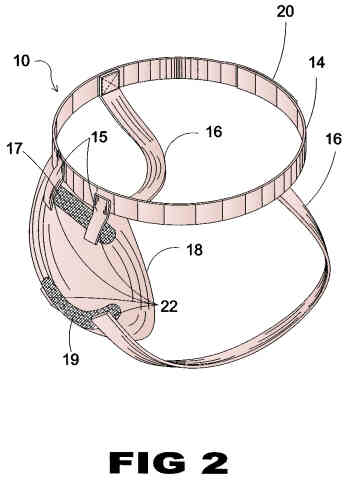

| FIGURE 2 Figure 2 is an isometric view of the present invention. |
 |

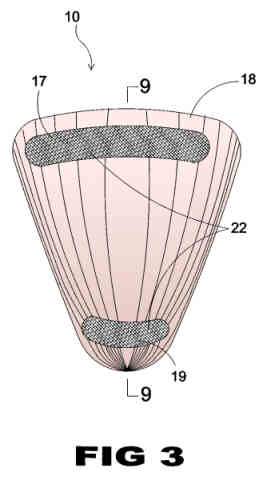

| FIGURE 3 Figure 3 is a front view of the invention.
|
 |

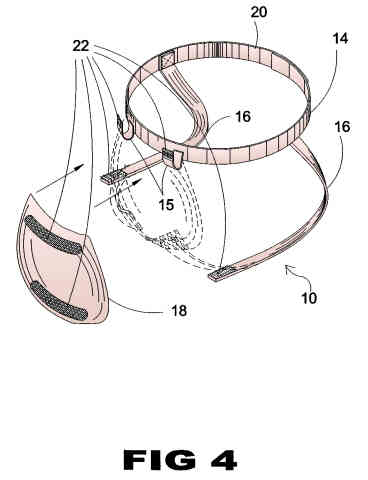

| FIGURE 4 Figure 4 is an isometric view of the invention. |
 |
| FIGURE 5 Figure 5 is a back view of the present invention. |
 |
| FIGURE 6 Figure 6 is also a back view of the present invention. |
 |

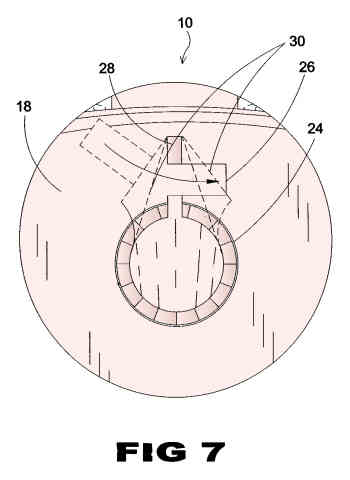

| FIGURE 7 Figure 7 is a back view of the invention. |
 |

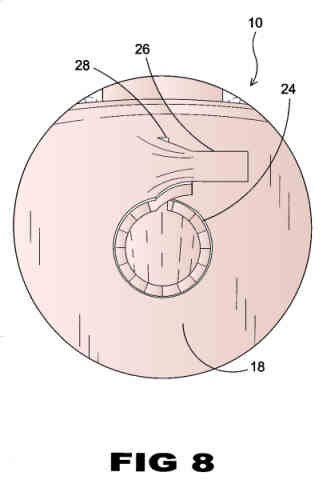

| FIGURE 8 Figure 8 is a back view of the invention. |
 |

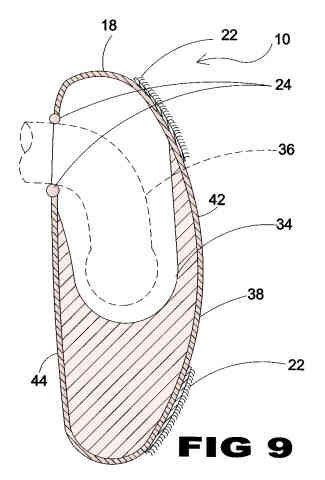

| FIGURE 9 Figure 9 is a cross section of the present invention. |
|
If you are interested in licensing, purchasing the rights to the above invention or entering into a royalty
agreement please contact the office of Michael I. Kroll as follows:
