*****New Product For Licensing, Manufacturing, and/or Investors*****
As attorney for the inventor of the innovative Golf Ball Cleaner we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention.
Objects of the present invention:
- to provide a hand-operated golf ball cleaning device wherein the golf ball travels along an arcuate groove of cut bristles by means of a hand operated entrainment block which rotates the balls to insure that the entire surface of each ball is thoroughly scrubbed
- to provide a portable hand-operated golf ball cleaning device having a housing with a hinged cover that can be secured with a latch member
- to provide a portable hand-operated golf ball cleaning device wherein the entrainment block is rotated by the user turning a handle attached to a shaft communicating between said handle and the entrainment block
- to provide a portable hand-operated golf ball cleaning device having a row of bristles extend down from the inside of the cover peripheral to the entrainment block to provide further scrubbing capabilities
- to provide a portable hand-operated golf ball cleaning device having a pivoting handle for moving the handle from an inoperative to an operative rotational position
- to provide a portable hand-operated golf ball cleaning device that is simple and easy to use
- to provide a portable hand-operated golf ball cleaning device that is economical in cost to manufacture
The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.
| LIST OF REFERENCE NUMERALS |
| 10 golf ball cleaner |
30 entrainment block |
| 12 golfer | 32 recess of entrainment block |
| 14 handle |
34 bristles |
| 16 golf bag | 35 groove |
| 18 golf balls |
36 shaft |
| 20 handle | 38 handle knob |
| 21 pin means |
40 latch mechanism |
| 22 housing | 42 clip attachment ring |
| 24 cover |
44 base of latch |
| 26 hinge | 46 post of latch |
| 28 handle lock recess |
48 gasket |
|
| PATENT DRAWINGS |
 |

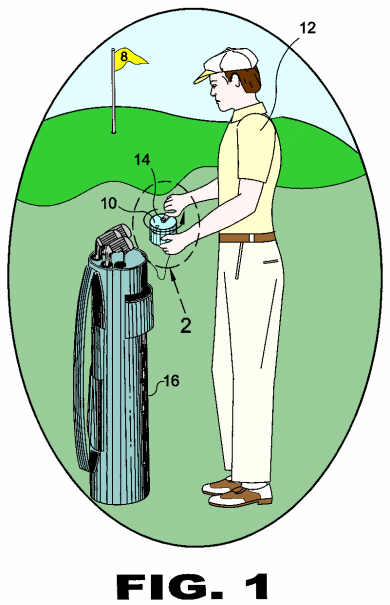

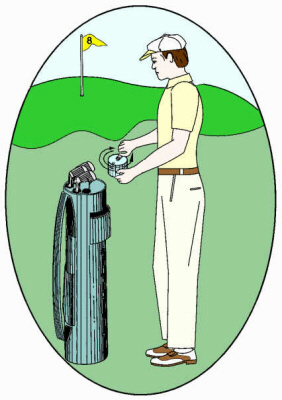

| FIGURE 1 Figure 1 is a perspective view of the present invention in use. |
 |

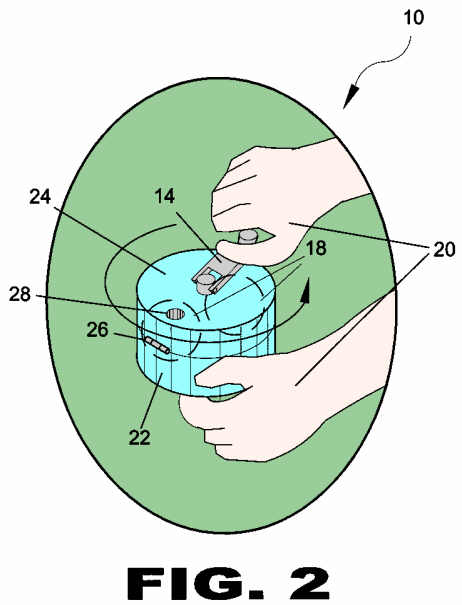

| FIGURE 2 Figure 2 is an enlarged perspective view of the present invention.
|
 |

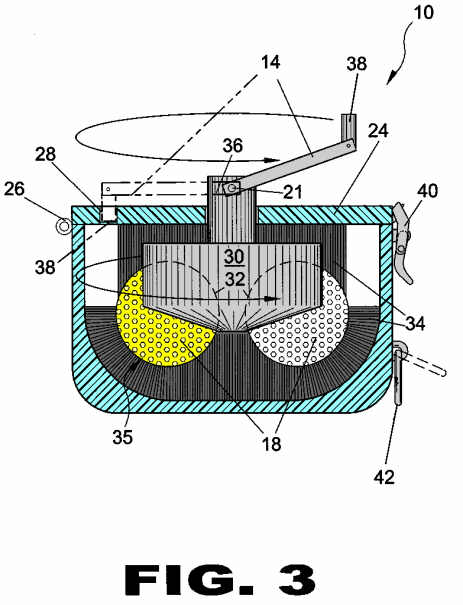

| FIGURE 3 Figure 3 is a cross sectional side view of the present invention in use. |
 |

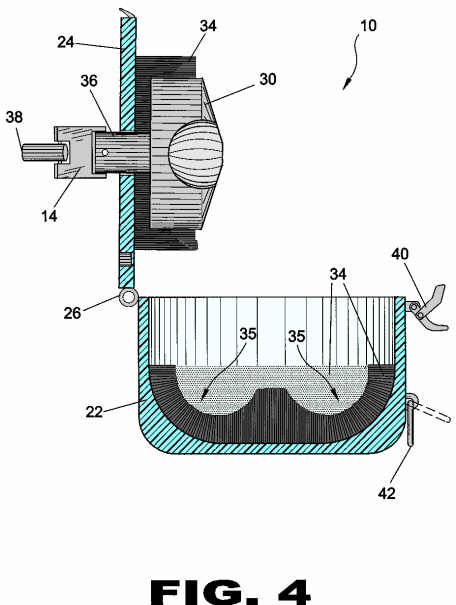

| FIGURE 4 Figure 4 is a cross sectional side view of the present invention. |
 |

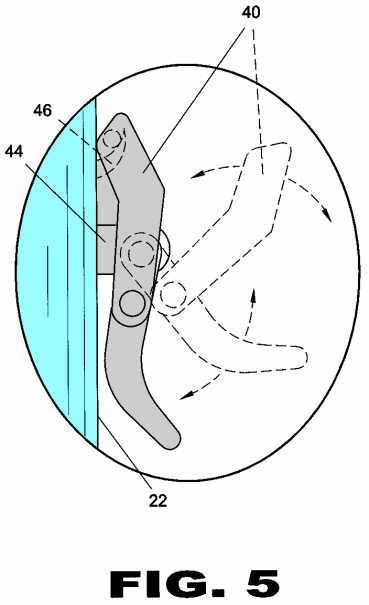

| FIGURE 5 Figure 5 is a side view of the latching mechanism. |
 |

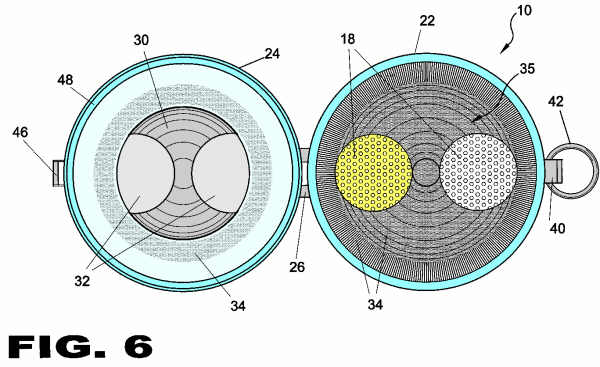

| FIGURE 6 Figure 6 is a top view of the present invention with the cover open. |
|
