The Hunter's Perspective

*****New Product For Sale or Licensing*****

The following patent is currently for sale or license by the inventor. If you are interested in making an offer or would like more information please contact the attorney at the numbers listed on the bottom of this page.



Hat Brim With Rearview Mirrors
invention uses
patent drawings
contact info
patent attorney
U.S. Patent : 8,506,100

Inventor : James Prendamano


It has happened to the best of us... You are set up in your tree stand with a commanding view of the landscape in front of you. Binoculars in-hand...weapon at the ready as you wait for that one moment that all hunters treasure. And then it happens. Behind you, you hear the crack of a branch, then another, and then leaves rustling. Yes - your prized trophy is behind you in the brush. How could this have happened again??? As you try to quietly turn and get a look, the game catches your movement... startles and runs off deep into the woods. If only there was an efficient, nonintrusive way to view your complete perimeter.

To cure this all too common dilemma, we are proud to present "The HuntersPerspective." Using two small, double articulating mirrors incorporated into the brim of a hunters hat, this ingenious yet incredible simple system will afford the hunter a full view of his surroundings, allowing him to monitor all activity behind him. Using "The Hunters Perspective", the hunter will have the ability to see game as it approaches from the rear in a distance, giving him or her the ability to change position in the tree stand and prepare for the shot before the animal gets too close and while the game is not looking at you.The mirrors fold out of the way when not in use and can be added to your lucky hat. We also have planned a complete package which will include the "The Hunters Perspective" system already installed on either a camouflage pattern or orange cap with a built in LED light in the brim.

As attorney for the inventor of the innovative new Hunter's Perspective we are currently seeking investors and manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach the attorney at the contact numbers listed at the bottom of this page.

The present invention allows hunters to view any game behind them without having to startle them through movement. The rearview mirror is an integral part of the brim of the hat, the telescopic arm is extended and the mirror is rotated to the desired angle. The telescopic arm provides for extending the mirror past any obstructions for maximum vision behind the hunter while sitting in a tree stand or any hunting blind.

There are other mirror devices designed for rearward viewing. While these devices may be suitable for the purposes for which they where designed, they would not be as suitable for the purposes of the present invention as heretofore described.


Invention Objects & Goals

  • to provide a hat with rearview mirrors pivotally mounted to the hat brim that can be used by hunters to view game while limiting the need to move unnecessarily

  • to provide a hat with rearview mirrors forming an integral part used to view game behind a user without turning around

  • to provide a hat with rearview mirrors having a telescopic arm portion comprising nested sleeve segments

  • to provide a hat with rearview mirrors having a mirror pivotally mounted to said telescopic arm portion

  • to provide an element wherein said telescopic arm portion is rotatable, extendable and retractable from a housing portion

Patent Drawings

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.


LIST OF REFERENCE NUMERALS
10 Hat having Adjustable Rear View Mirrors 28 ball joint
12 hat 30 LED
14 brim of 12 32 illuminable member
16 hunter 34 central ball joint
18 rear view mirror 36 threaded post
20 game 38 cap
22 telescopic arm 40 aperture
24 tree stand

hunting cap
FIGURE 1

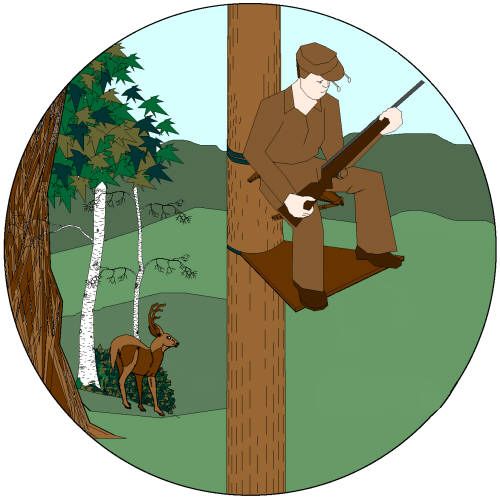

Figure 1 is an illustrative view of the present invention in use. Shown is the telescoping, pivoting rearview mirror device for hats 10 permanently or temporarily affixed to the bill 14 of a cap 12 that allows hunters 16 to view any game 20 behind them without having to startle the game through movement. The rearview mirror 18 is an integral part of the bill 14 or brim of the cap 12, the telescopic arm 22 is extended and the mirror 18 is rotated to the desired angle. The telescopic arm 22 provides for extending the mirror 18 past any obstructions for maximum vision behind hunter 16 while sitting in a tree stand 24 or any hunting blind.

hunters hat

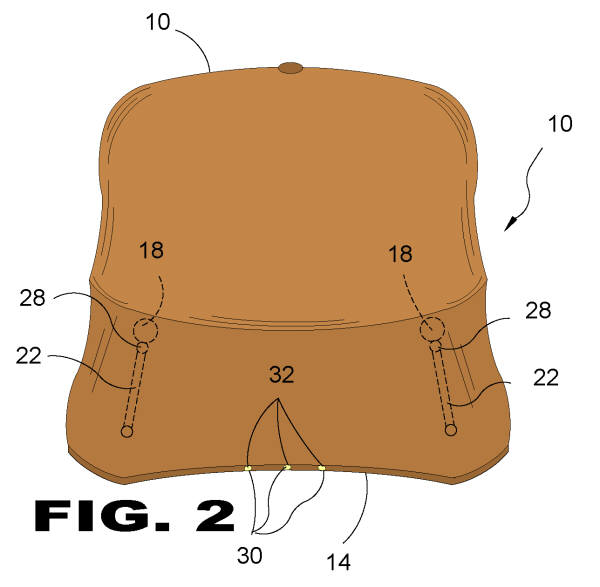

FIGURE 2

Figure 2 is a perspective view of the telescopic pivoting rearview mirrors device for hats 10 integrally mounted on a hat brim 14. Shown is the hat rearview mirror 18 permanently attached to the brim's right and left side with the mirrors 18 pivotal and mounted to the bill 14 of the cap 12 with the telescopic arms 22. The pivotal members connecting mirrors 18 to the telescopic arms are ball joints 28 for adjusting the mirror angle with the telescopic arms 24 provided for extending and retracting the mirror 18. The present invention also provides that the brim 14 may include one or more illuminable element s 30 positioned on the edge thereof depicted here as LED lights 32.

rearview hat
FIGURE 3

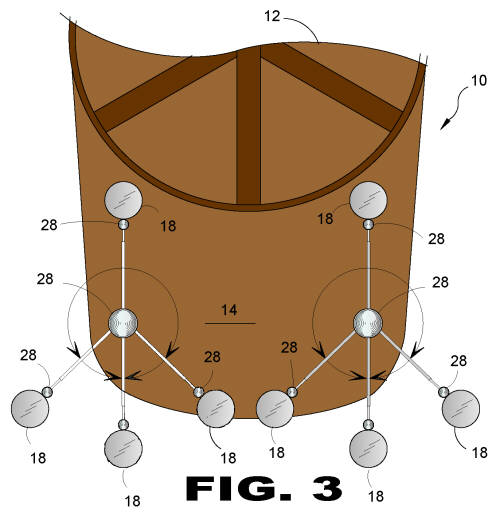

Figure 3 is a bottom view of the telescoping, pivoting rearview mirrors for hats device for hats 10. Shown is a bottom view of the hunter's hat 12 having left and right rearview mirrors 18 permanently attached to the brim 14. The telescopic arms 22 are attached to the brim 14 by ball joint 28 and the mirror 18 employs ball joints 28 provides for moving the mirrors 18 to and from the brim 14 and left and right across the brim 14. The telescopic members 22 provides for selectively extending the respective mirror's 18 viewing angle.

rearview vision

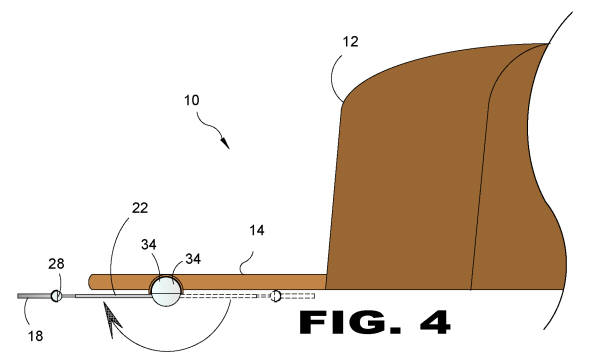

FIGURE 4

Figure 4 is a side view of the integral telescoping, pivoting rearview mirror for hats 10. The hat 12 with rearview mirror 18 provides for extending the mirror 18 past any obstructions and pivoting the mirror 18 to a desired angle. Shown is a central ball joint 28 forming an integral part of the hat brim 14 having a telescopic arm 22 extending therefrom and terminating in another ball joint 28 having the mirror 18 pivotally attached thereto.

hunting cap

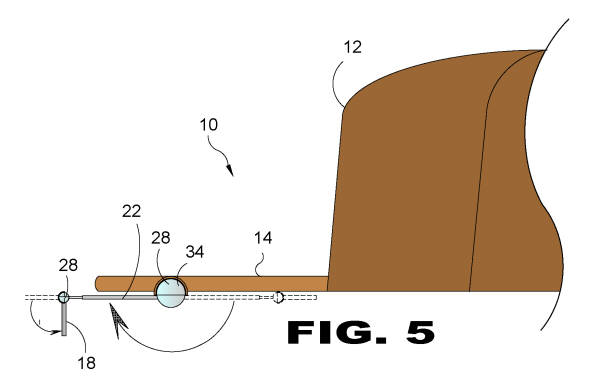

FIGURE 5

Figure 5 is a side view of the integral telescoping, pivoting rearview mirror for hats 10 with the mirror 18 pivoted. The hat 12 with rearview mirror 18 provides for extending the mirror 18 past any obstructions and pivoting the mirror 18 to a desired angle. Shown is a central ball joint 28 forming an integral part of the hat brim 14 having a telescopic arm 22 extending therefrom and terminating in another ball joint 28 having the mirror 18 pivotally attached thereto.

hunters cap

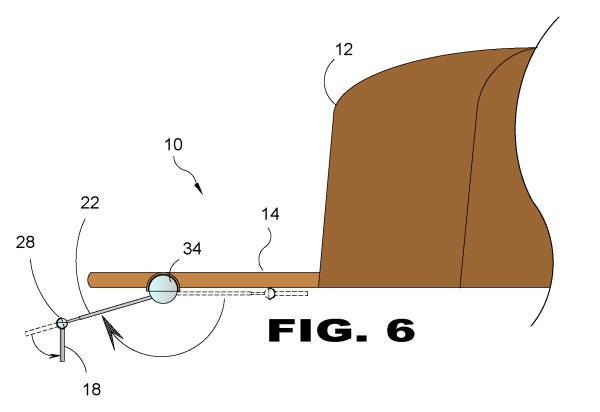

FIGURE 6

Figure 6 is a side view of the integral telescoping, pivoting rearview mirror for hats 10. The hat 12 with rearview mirror 18 provides for extending the mirror 18 past any obstructions and pivoting the mirror 18 is the central ball joint 34,28 swung to a desired angle. Shown is the central ball joint 34,28 forming an integral part of the brim 14 of the hat 12 having a telescopic arm 18 extending therefrom and terminating in another ball joint 28 having the mirror 18 pivotally attached thereto.

rearview hunting cap

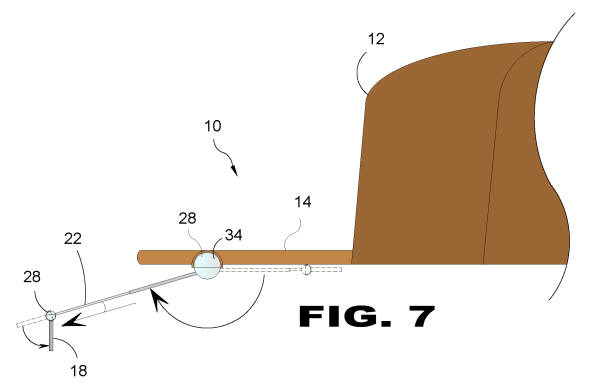

FIGURE 7

Figure 7 is a side view of the integral telescoping, pivoting rearview mirror for hats 10with rearview mirror 18 pivoted through its central ball joint 28, and telescopic arm 22 extended. The hat 12 with rearview mirror 18 provides for extending the mirror 18 past any obstructions and pivoting the mirror 18 to a desired angle. Shown is a central ball joint 34 forming an integral part of the hat brim 14 having a telescopic arm 22 extending angularly downward therefrom and terminating in another ball joint 28 having the mirror 18 pivotally attached thereto.

rearview hunting hat

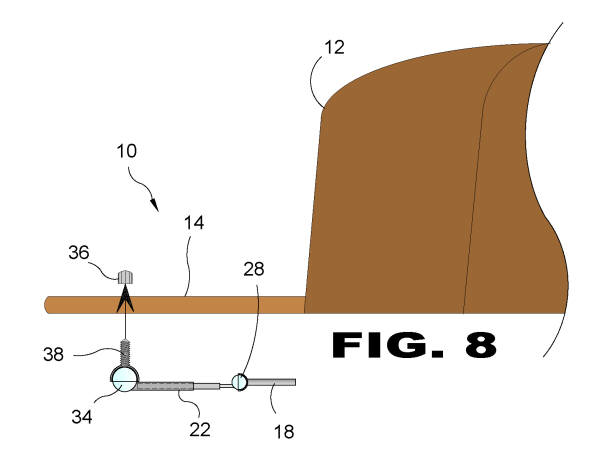

FIGURE 8

Figure 8 is a side view of an additional element is a side view of the integral telescoping, pivoting rearview mirror for hats 10 of the present invention. The present invention provides the additional element of a brim 14 attachable rearview mirror 18 for an existing hat 12 comprising a threaded post 36 attached to a central ball joint 34 with mating cap 38 having the telescopic arm 22 attached thereto so that the mirror 18 can be rotated by the ball joint 28 once secured to the hat brim 14.

hunting

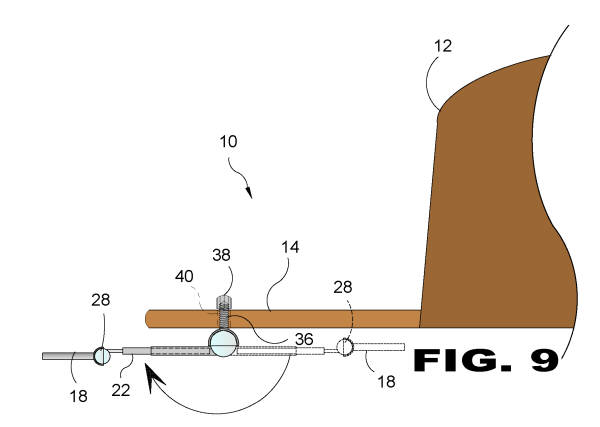

FIGURE 9

Figure 9 is a side view of the removable telescoping, pivoting rearview mirror for hats 10. Shown is the brim 14 attachable rearview mirror 18 attached to the brim 14 of an existing hat 12 with threaded post 36 that pass through an aperture 40 in the brim 14 so that a user can extend or retract the telescopic arm 22 and rotate the rearview mirror 18 to the front of the brim 14 and rotate the mirror 18 on it's ball joint 28 to a desired angle for maximum vision behind the hunter while sitting in a tree stand or any hunting blind.

hunters gear

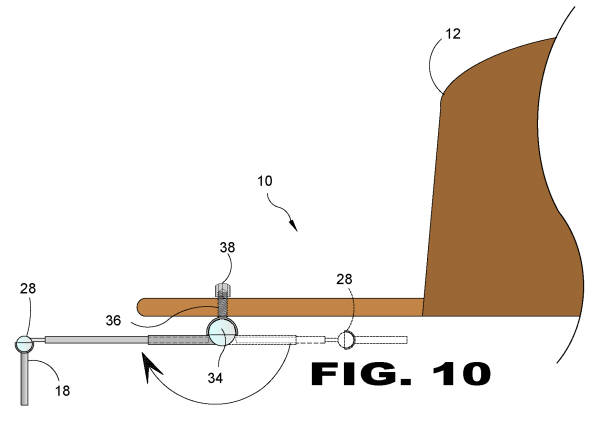

FIGURE 10

Figure 10 is a side view of the removable telescoping, pivoting rearview mirror for hats 10 with the rearview mirror 18 rotated and extended. The hat 12 with rearview mirror 18 provides for extending the mirror past any obstructions and rotating the mirror 18 on its ball joint 28 to a desired angle for maximum vision behind the hunter while sitting in a tree stand or any hunting blind. The central ball joint 34 is secured to the brim 14 with a threaded post 36 and cap 38.
