| Baby Bottle & Nipple Cleaning Apparatus |
*****New Product For Sale, Licensing and/or Investors*****
| The following patent is currently for sale by the inventor. If you are interested in making an offer or would like more information please contact the attorney at the numbers listed on the bottom of this page. |
As attorney for the inventor of the innovative Baby Bottle & Nipple Cleaning Apparatus we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach the attorney at the contact numbers listed at the bottom of this page.
The present invention discloses a baby bottle and nipple cleaning apparatus having a plurality of interchangeable brush members that attach to an electrically operated handle that serves to oscillate or rotate the brushes to more effectively remove debris from the object being cleaned. Other brush attachments may be adapted for cleaning other objects such as dishes and the like. The present invention may be available in any number of colors such as child friendly pastels. Decorative figures such as teddy bears, clowns, cartoon characters and the like may also adorn the handle and/or charger.
|
Objects of the present invention:
- to provide an electrically operated oscillating or rotating brush apparatus for cleaning baby bottles and nipples
- to provide an electrically operated oscillating or rotating brush apparatus for cleaning baby bottles and nipples having a plurality of interchangeable brush members
- to provide an electrically operated oscillating or rotating brush apparatus for cleaning baby bottles and nipples that is rechargeable
- to provide an electrically operated oscillating or rotating brush apparatus for cleaning baby bottles and nipples having a battery charger in which the brush handle stands upright in during recharging
- to provide an electrically operated oscillating or rotating brush apparatus for cleaning baby bottles and nipples that is simple and easy to use
- to provide an electrically operated oscillating or rotating brush apparatus for cleaning baby bottles and nipples that is inexpensive to manufacture and operate
|
The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.
| LIST OF REFERENCE NUMERALS |
| 10 present invention |
32 battery |
| 12 handle | 34 motor |
| 14 cleaning element |
36 plate |
| 16 on/off switch | 38 nipple brush |
| 18 cap |
40 bottle brush |
| 20 contact | 42 oscillating affect |
| 22 port |
44 baby bottle |
| 24 stem | 46 nipple |
| 26 protrusion |
48 battery recharger |
| 28 threaded end | 50 rest |
| 30 threads |
52 decoration |
|
| PATENT DRAWINGS |
 |

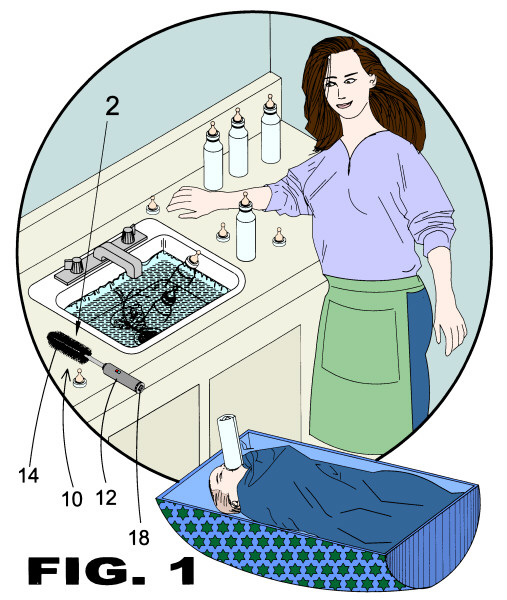

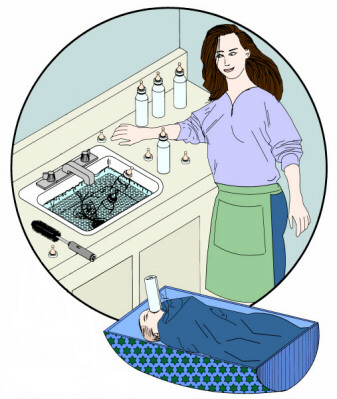

| FIGURE 1 Figure 1 is an illustrative view of the present invention in use. |
 |

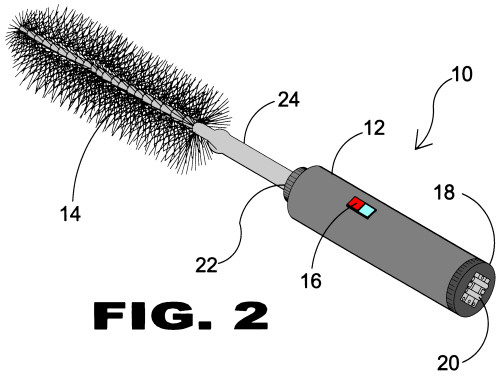

| FIGURE 2 Figure 2 is a perspective view of the present invention.
|
 |

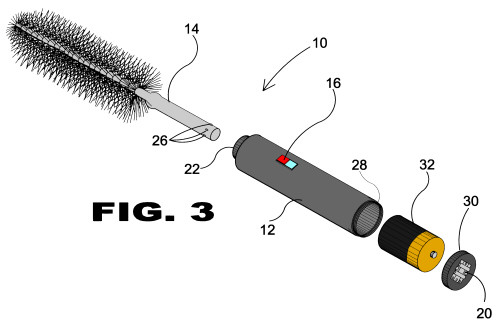

| FIGURE 3 Figure 3 is an exploded view of the invention. |
 |

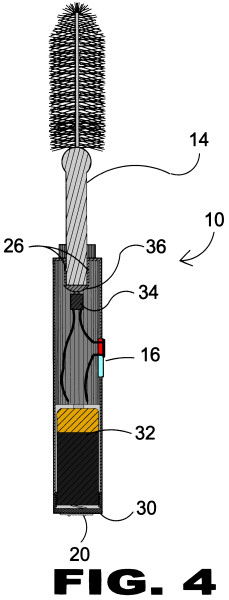

| FIGURE 4 Figure 4 is a sectional view of the present invention. |
 |

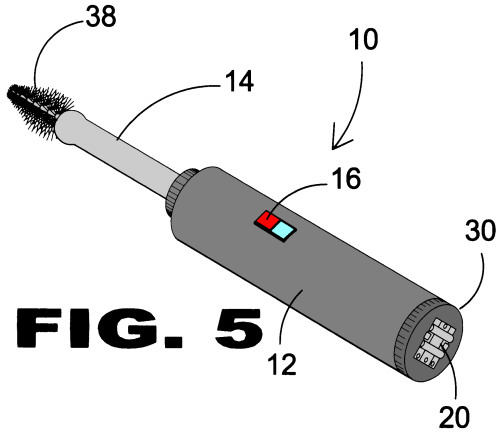

| FIGURE 5 Figure 5 is a perspective view of the invention. |
 |

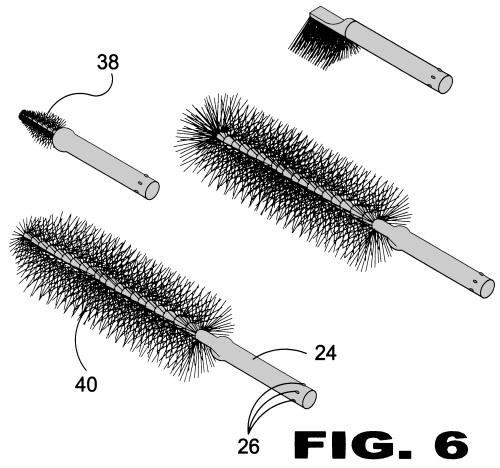

| FIGURE 6 Figure 6 is a perspective view of the invention. |
 |

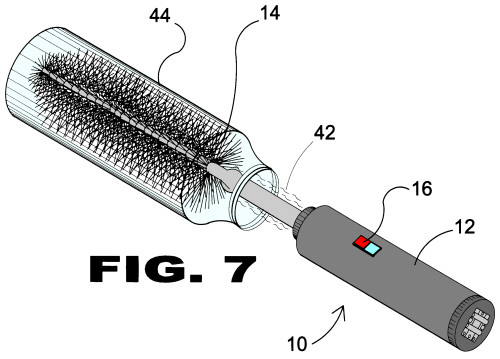

| FIGURE 7 Figure 7 is an illustrative view of the invention. |
 |

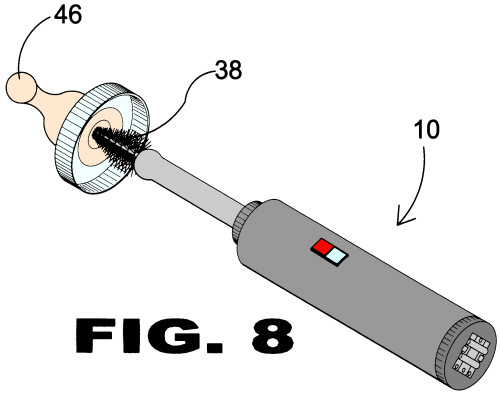

| FIGURE 8 Figure 8 is a perspective view of the invention. |
 |

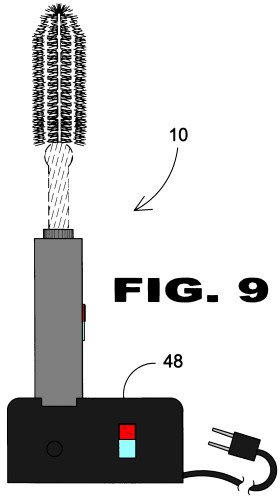

| FIGURE 9 Figure 9 is a view of the present invention with battery recharger. |
 |

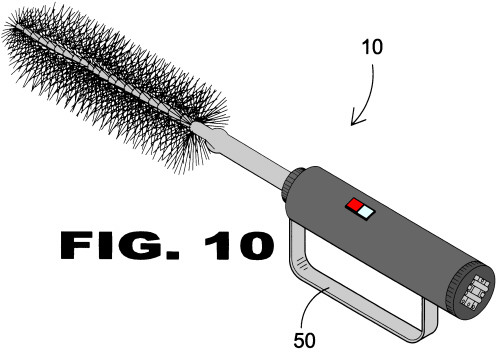

| FIGURE 10 Figure 10 is an alternate embodiment of the present invention. |
 |

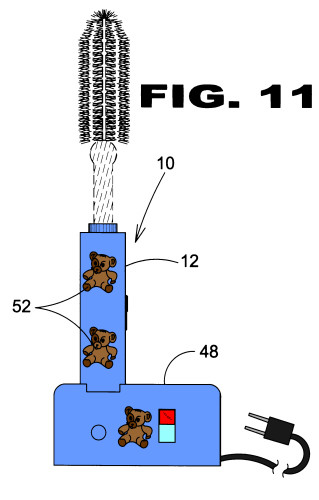

| FIGURE 11 Figure 11 is a view of the present invention demonstrating one of the possible decorations. |
|
If you are interested in licensing, purchasing the rights to the above invention or entering into a royalty
agreement please contact the office of Michael I. Kroll as follows:
