*****New Patent For Sale, Licensing, Manufacturers and/or Investors*****

U.S. Patent : # 7,250,869 Click patent number for full text patent document. Inventor : Le'Roychelle Davis invention uses patent drawings contact info patent attorney

As attorney for the inventor of the innovative Child Carseat Alert System we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach the attorney at the contact numbers listed at the bottom of this page.

The present invention provides an alert system to a child car seat that incorporates sensors, which are in communication with a vehicle electrical system. When an engine is stopped, the sensors signal a remote, which engages an indicator such as a tone. The indicator alerts any passengers in a vehicle that the engine is off and that a child remains in the child car seat. Thus, the indicator reduces the likelihood of inadvertently leaving a child in a vehicle unattended.

Objects of the present invention: to provide a child car seat alert mechanism that reminds the driver of the vehicle that the vehicle has stopped and the child remains in the child car seat to provide a child car seat alert mechanism whereby the child car seat includes sensors for determining the presence of a child in the car seat to provide a child car seat alert mechanism that includes a mechanism for determining that the vehicle's engine is running to provide a child car seat alert mechanism including a mechanism for communicating with the vehicle's electrical system the information regarding the on/off status of the engine to provide a child car seat alert mechanism wherein the vehicle electrical system transmits a signal corresponding to the engine's on/off status for receipt by a remote unit to provide a child car seat alert mechanism whereby the remote unit activates an indicator for informing a user that the child remains in the child car seat to provide a child car seat alert mechanism wherein the indicator is positioned on an external or internal surface of the vehicle to provide a child car seat alert mechanism whereby the passenger is alerted to a child exiting the child seat after the engine has started to provide a child car seat alert mechanism that is simple and easy to use to provide a child car seat alert mechanism inexpensive to manufacture and operate

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.

LIST OF REFERENCE NUMERALS 10 present invention 38 weight sensor 12 sensor 40 child car seat processor 14 connection link 42 child car seat receiver 16 vehicle electrical system 44 child car seat transmitter 18 signal 46 indicator signal 20 remote 50 engine 22 indicator 52 second switch 24 driver 54 engine sensor 26 child 56 vehicle electrical system processor 28 child car seat 58 vehicle electrical system transmitter 30 seatbelt 60 "off" signal 32 vehicle 62 "on" signal 36 first switch

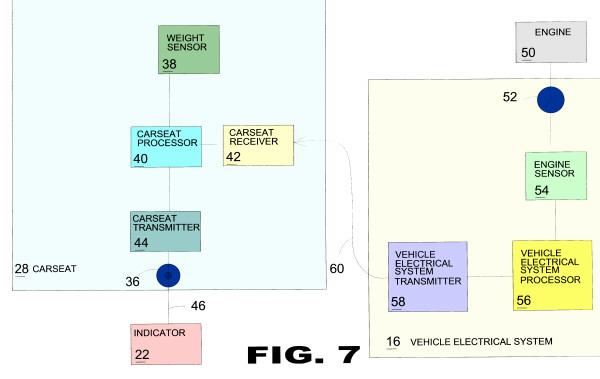

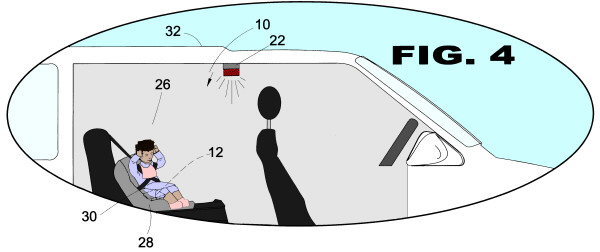

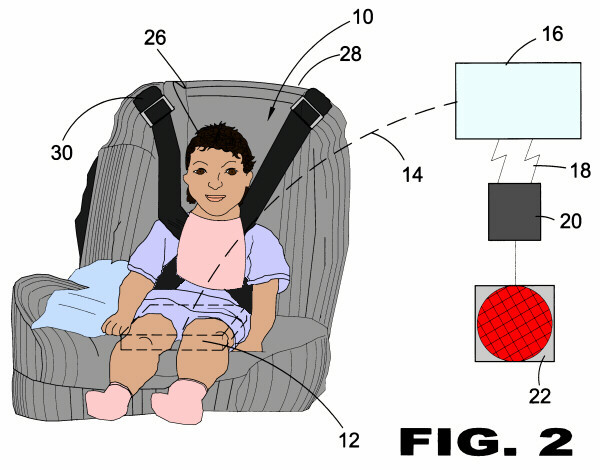

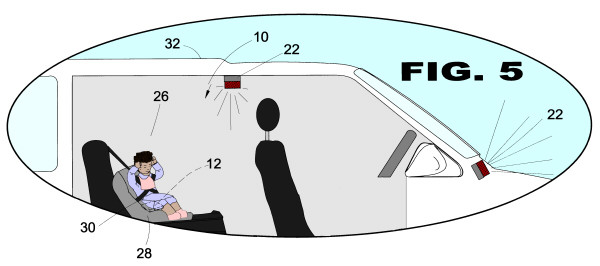

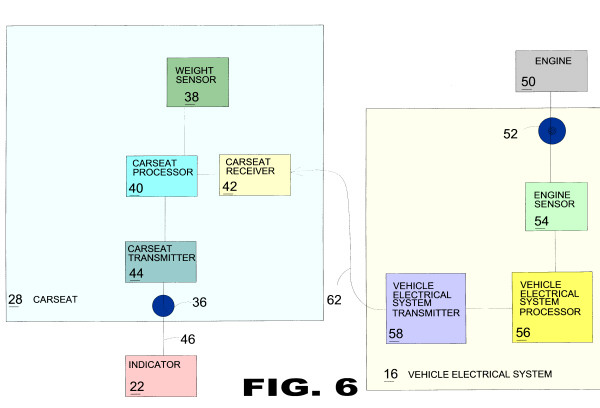

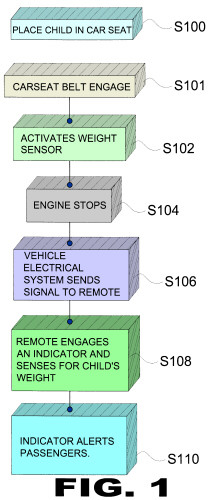

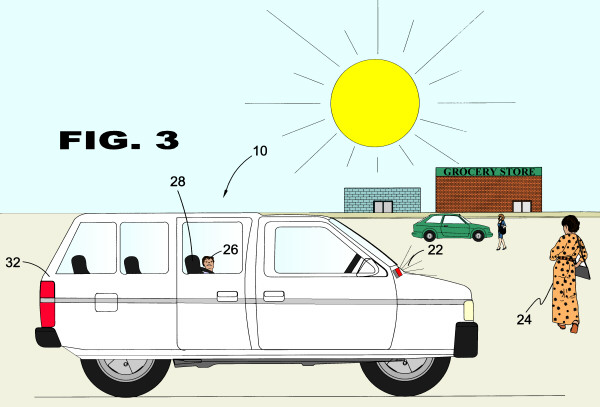

PATENT DRAWINGS FIGURE 1 Figure 1 is a flowchart detailing the operation of the child car seat alert mechanism of the present invention. FIGURE 2 Figure 2 is a perspective view of the child car seat alert mechanism of the present invention retaining a child therein. FIGURE 3 Figure 3 is an illustrative view of a vehicle including the child car seat alert mechanism of the present invention having the indicator positioned on an external surface of the vehicle. FIGURE 4 Figure 4 is an illustrative view of a vehicle having the child car seat alert mechanism having the indicator positioned on an internal surface of the vehicle. FIGURE 5 Figure 5 is an illustrative view of a vehicle including the child car seat alert mechanism of the present invention having a plurality of indicators positioned therein. FIGURE 6 Figure 6 is a block diagram of the child car seat alert mechanism of the present invention. FIGURE 7 Figure 7 is a block diagram of an alternative embodiment of the child car seat alert mechanism of the present invention.

If you are interested in licensing, purchasing the rights to the above invention or entering into a royalty agreement please contact the office of Michael I. Kroll as follows:

Michael I. Kroll
80 Skyline Drive, Suite 304
Plainview, New York 11803
Tel. #: 800-367-7774
Tel. #: 516-367-7777
Fax #: 800-367-7999
Fax #: 516-802-0510

E-Mail patent@invention.net
