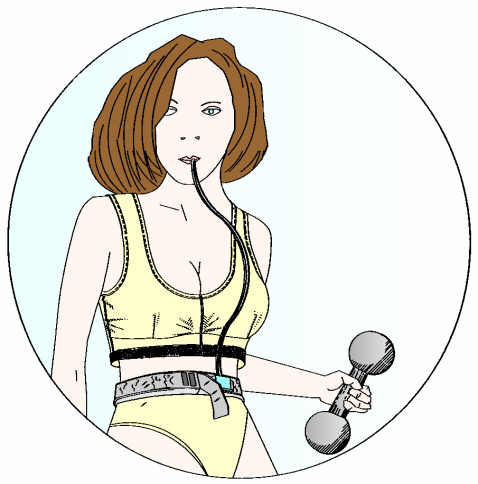

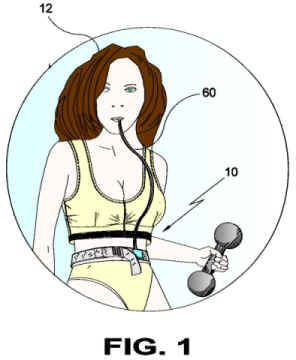

Figure 1 is a pictorial view showing an individual engaging in a daily work out, while enjoying a cool refreshing drink from the beverage container belt. Shown also is the retractable straw in its fully extended position.

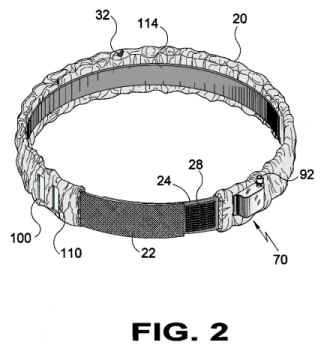

Figure 2 is a perspective view showing the displacement relations between several of the components that comprise the beverage container belt.

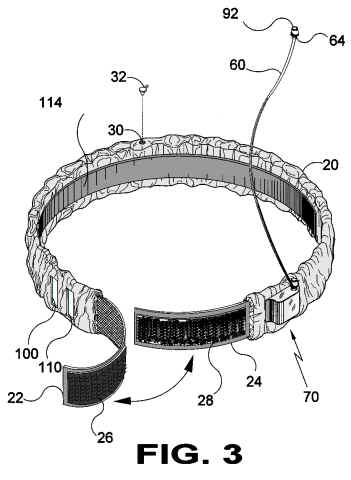

Figure 3 is a perspective view, showing the displacement relations between several of the intricate components that comprise the beverage container belt. Also shown are the ideal mating relations between the filling plug and the filling orifice. Also shown is the fastening means in the unfastened position.

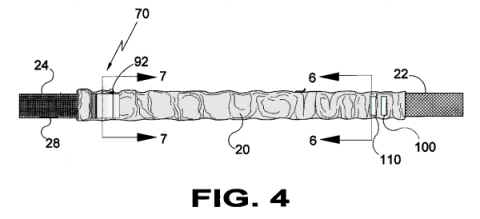

Figure 4 is a front view, showing the linear displacement relations of the intricate components that are housed on the top most section of the beverage container belt. Also shown are the linear displacement relations of the temperature indicator as it relates to the beverage container housing.

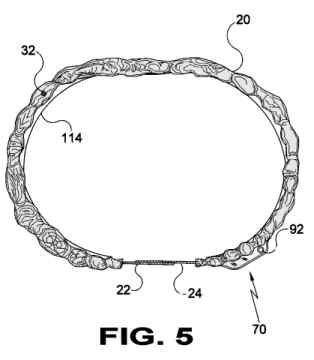

Figure 5 is a top view, showing the linear displacement relations of the intricate components that are housed on the top most section of the beverage container belt.

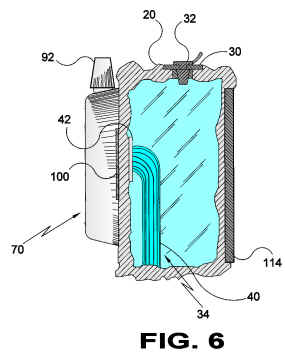

Figure 6 is a sectional view, taken from Figure 4 as indicated. Shown are the displacement relations of the temperature indicator, the winder mechanism, the isolating element, and the nozzle as they relate to the outer covering of the beverage container belt.

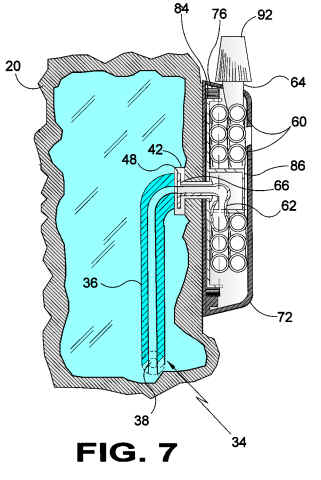

Figure 7 is a sectional view, taken from Figure 4 as indicated. Shown are the linear displacement relations of the winder mechanism as it relates to the nozzle, the straw and the mating member Also shown are the mating relations between the straw and the collecting member. Shown also are the coupling relations between the coil spring as it mates and relates to the winder housing.

Figure 8 is a partial front view with portions shown transparently to depict the linear displacement of the collecting member as it relates to the winder mechanism as well as the container housing. Also shown are the displacement relations between the belt strap and the container housing as they relate to the winder housing.

Figure 9 is a partial view showing the linear displacement of the temperature and fluid level indicator as they relate to each other and the container housing. Also shown is the functional aspect of the temperature indicator as depicted by the color and temperature range variations.

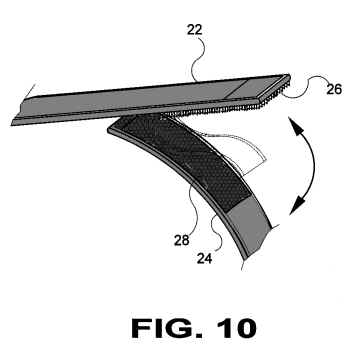

Figure 10 is a perspective view showing the mating relations of the belt straps.

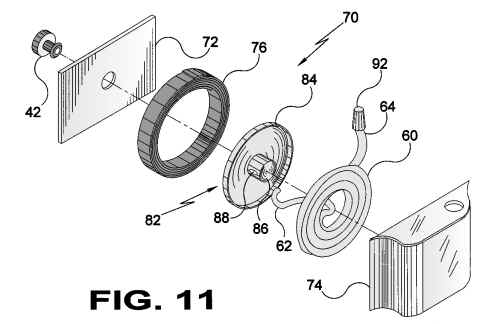

Figure 11 is an exploded view of the winder mechanism.
