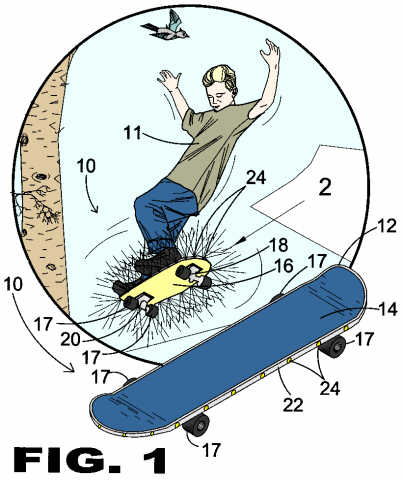

FIGURE 1 Figure 1 is a perspective view of a user riding the illuminated recreational board of the present invention when fitted to be formed as a skateboard. |
 |
FIGURE 2 Figure 2 is a top perspective view of the illuminated recreational board of the present invention.
|
 |

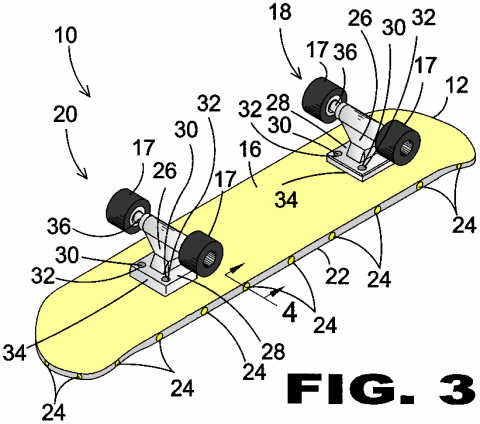

FIGURE 3 Figure 3 is a bottom perspective view of the illuminated recreational board of the present invention. |
 |

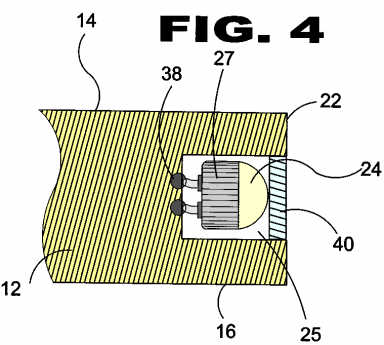

FIGURE 4 Figure 4 is a cross sectional view of the illuminated recreational board of the present invention taken along line 4-4 of Figure 3 showing an LED mounted within the deck.
|
 |

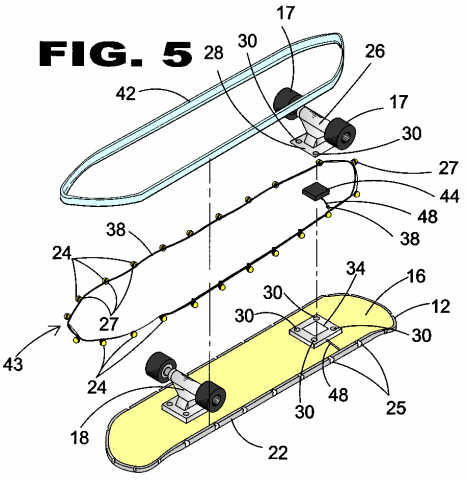

FIGURE 5 Figure 5 is an exploded bottom perspective view of the illuminated skateboard of the present invention. |
 |

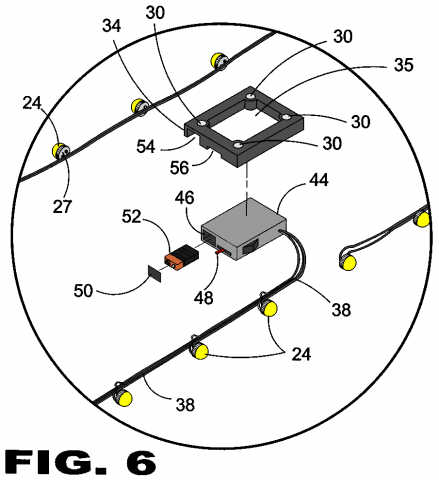

FIGURE 6 Figure 6 is an exploded view of a riser and control box of the rear assembly of the illuminated recreational board of the present invention. |
 |

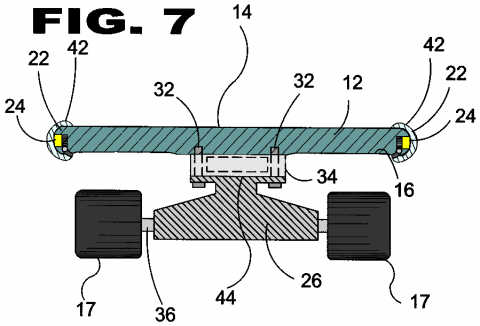

FIGURE 7 Figure 7 is a cross sectional view of the rear wheel assembly and deck of the illuminated recreational board of the present invention. |
 |

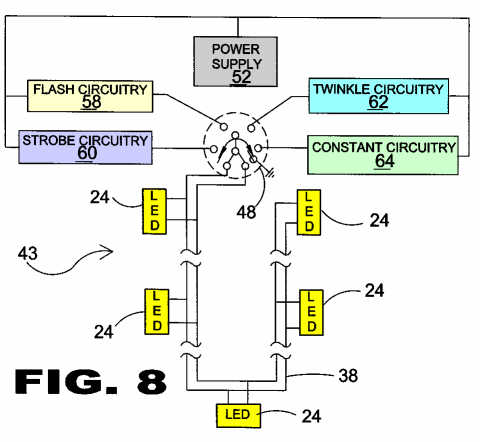

FIGURE 8 Figure 8 is a block diagram illustrating the electrical connections of the components of the LED circuit of the illuminated recreational board of the present invention. |
 |

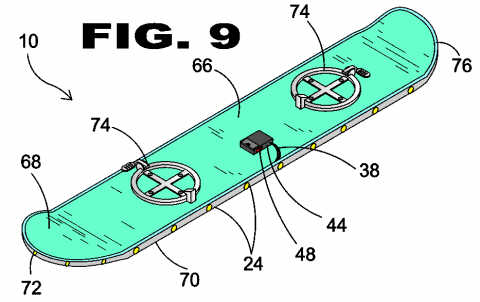

FIGURE 9 Figure 9 is a perspective view of the illuminated recreational board of the present invention. |
