| Drywall Sanding Sponge Holder |
*****New Product For Sale, Licensing and/or Investors*****
| The following patent is currently for sale by the inventor. If you are interested in making an offer or would like more information please contact the attorney at the numbers listed on the bottom of this page. |
U.S. Patent : 7,186,174
Click patent number for full text patent document.
Inventor : Alfred W. Arnold
|
|
As attorney for the inventor of the innovative new Drywall Sanding Sponge Holder we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach the attorney at the contact numbers listed at the bottom of this page.
The new product described herein is a holder for a drywall sanding sponge. The invention discloses a holder incorporating locking tabs used to lock the removable side wall into a compressing state upon the sanding block. To release compression on the sponge, the tab is simply pushed inward and the removable side wall is then pulled out.
|
Objects of the present invention:
- to provide a holder for a drywall sanding block with sides that extend beyond the holder
- to provide a holder for a drywall sanding block comprising mating holder arms
- to provide a holder for a drywall sanding block having spikes depending therefrom that engage the sanding block
- to provide a holder for a drywall sanding block having mating locking elements on opposing holder members
- to provide a holder having a pole receptacle that is pivotal longitudinally
|
The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.
| LIST OF REFERENCE NUMERALS |
| 10 present invention |
26 sliding tab |
| 12 handle assembly | 28 protrusions |
| 14 handle |
30 apertures / slots |
| 16 sanding block | 32 elongated handle |
| 18 handle base |
34 swivel joint |
| 20 side wall | 36 surface |
| 22 locking push tab |
38 flared portion |
| 24 track | 40 arrow |
|
| PATENT DRAWINGS |
 |

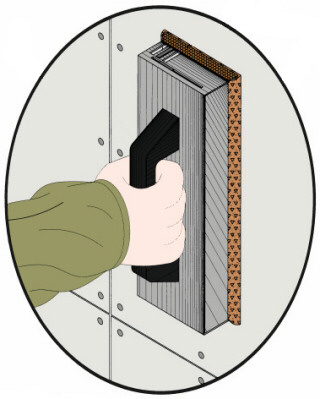

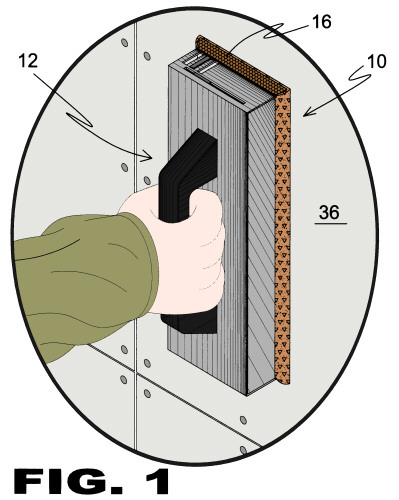

| FIGURE 1 Figure 1 is an illustrative view of the invention in use. |
 |

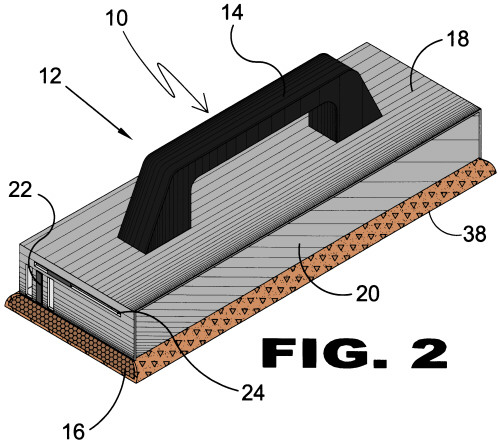

| FIGURE 2 Figure 2 is a perspective view of the invention.
|
 |

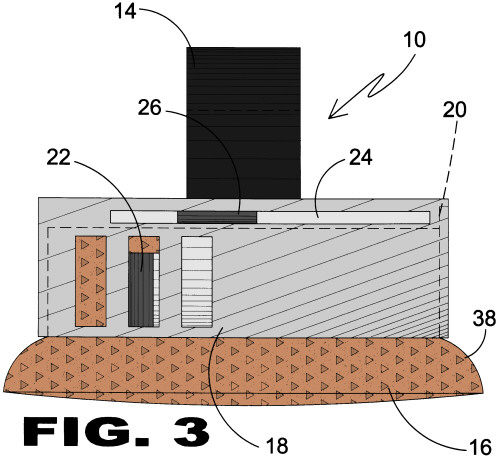

| FIGURE 3 Figure 3 is a front view of the invention. |
 |

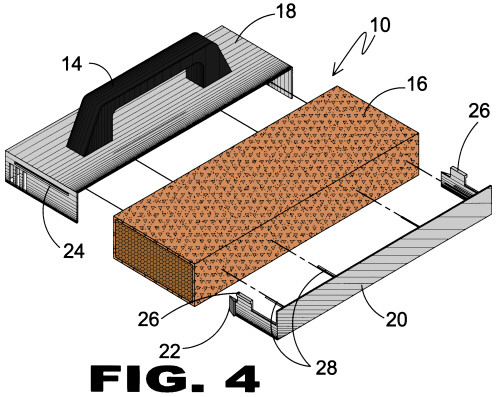

| FIGURE 4 Figure 4 is an exploded view of the invention. |
 |

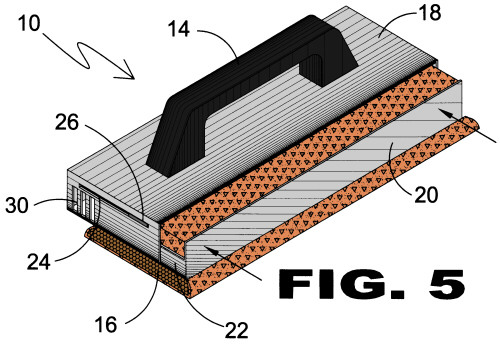

| FIGURE 5 Figure 5 is an assembly view of the invention. |
 |

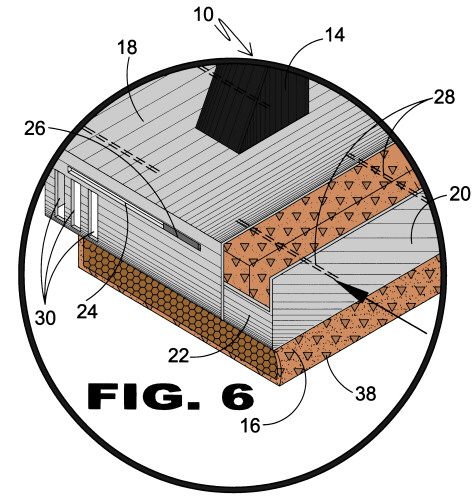

| FIGURE 6 Figure 6 is a detailed assembly view of the invention. |
 |

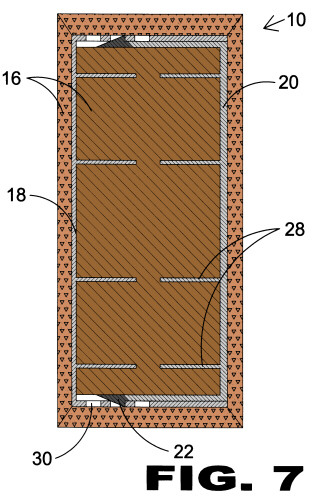

| FIGURE 7 Figure 7 is a sectional view of the invention. |
 |

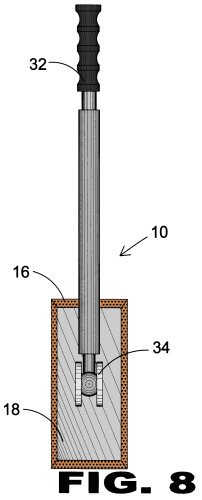

| FIGURE 8 Figure 8 is a top view of an additional element of the invention. |
 |

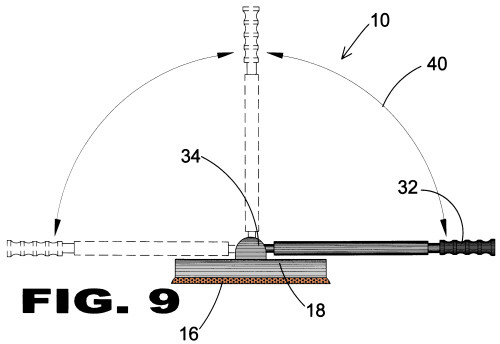

| FIGURE 9 Figure 9 is a side view of an additional element of the invention. |
|
If you are interested in licensing, purchasing the rights to the above invention or entering into a royalty
agreement please contact the office of Michael I. Kroll as follows:
Michael I. Kroll
80 Skyline Drive, Suite 304
Plainview, New York 11803
Tel. #: 800-367-7774
Tel. #: 516-367-7777
Fax #: 800-367-7999
Fax #: 516-802-0510
